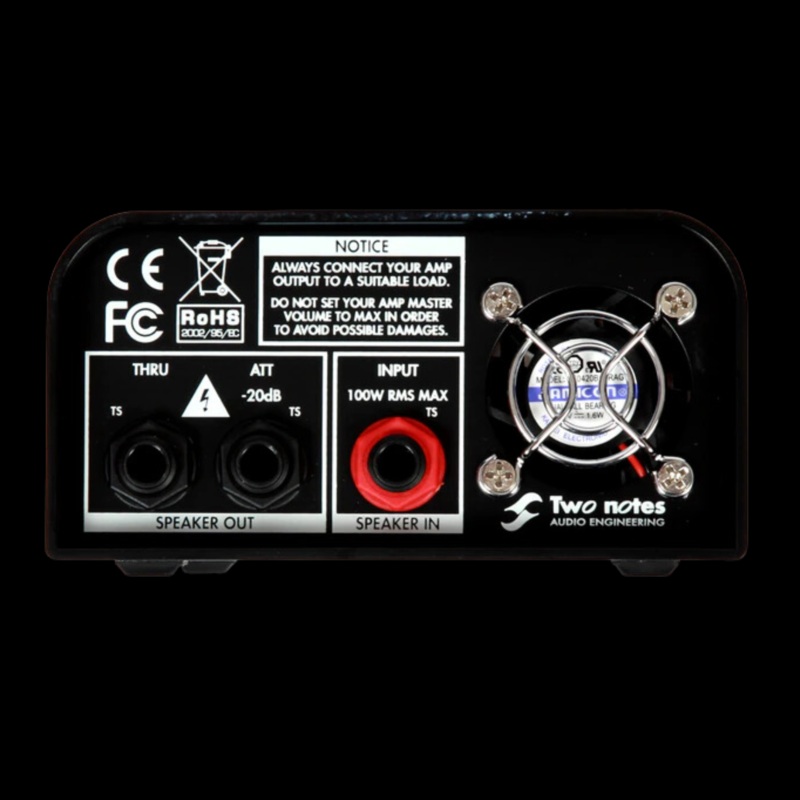

Two-Notes Torpedo Captor 16-ohm Reactive Loadbox

The Torpedo Captor 16 is an easy-to-use reactive Loadbox, perfect for unleashingyour favorite tube amp in a variety of modern applications and venues. Designedto be placed between your amp head and speaker cabinet, it acts as a powerattenuator and cabinet simulator, all packaged in a super-convenient DI-sizedenclosure.

Featuring a superior arsenal of connectivity options as well as the Two notes
GENOME plug-in software, complete with 16 stand-out virtual cabinets to choosefrom, the Torpedo Captor 16 allows you to use your amp at full potential at home,in the studio, or live.

Highlights

• Save space, weight and volume on stage
• Easy and fast recording
• Use your favorite loud amp at reasonable volume or silently
• Choose between 16 famous virtual cabinets with the GENOME plug-in
• Use your amp and play securely

Specifications

• Speaker input: 1/4 jack unbalanced (TS)
• Speaker Attenuated Output: 1/4 jack unbalanced (TS)
• Speaker Thru: 1/4 Jack unbalanced (TS) – Directly connected to Speaker Input (Loadbox disconnected when in use)
• Line Output: 1/4 Jack balanced (TRS) – Impedance: 1000 Ohms – Phase switch – Ground lift (Without speaker simulation)
• DI Output: XLR balanced – Impedance: 600 Ohms (With or without speaker simulation)
• Analog speaker sim: Guitar : based on Brit VintC DynIR Cabinet Dyn57
• Microphone / Bass : based on Fridge DynIR Cabinet Cnd87 Microphone
• Impedance: 4, 8 or 16 Ohms
• Max admissible power: 100W RMS
• Safety system: Temperature-controlled fan / Active thermal safety
• Width x Depth x Height: 12.6cm x 17.5cm x 6.2cm 4.9 x 6.7 x 2.4 (Including connectors and knobs)
• Weight: 1000 g / 2.2 lbs
• Input voltage: Phantom power or 9-12V DC jack, 2.15.5mm, negative center
• Current draw: 5mA
• Power input connector: DC connector, 2.1mm x 5.5mm, center negative (Power is required only for the XLR DI output and analog speaker sim)
